Why Temperature Control Is Crucial in Zinc Alloy Die Casting?

A reliable temperature control system helps maintain repeatable production conditions. For zinc alloy die casting manufacturers, the goal is not simply to heat or cool the mold as quickly as possible, but to keep the entire process within a suitable and stable operating range.

Table of Contents

• Quick Answer
• Key Takeaways
• 1. Why Temperature Matters in Zinc Alloy Die Casting
• 2. What Happens When Temperature Is Unstable?
• 3. How to Design an Effective Temperature Control System
• 4. Mold Temperature Controller vs. Industrial Chiller
• 5. Hengde Product Example and Manufacturing Experience
• FAQ
• Conclusion

Quick Answer

Temperature control is crucial in zinc alloy die casting because it helps maintain consistent mold conditions, supports predictable metal filling and solidification, reduces thermal stress, and improves production repeatability. A suitable system may combine an oil mold temperature controller for mold heating and temperature maintenance with an industrial chiller for cooling other equipment or process circuits.

The correct configuration depends on the alloy, mold design, casting cycle, required temperature range, heat load and cooling-water conditions. There is no single temperature setting or equipment configuration suitable for every die casting line.

Key Takeaways

• Stable mold temperature helps reduce variations between production cycles.
• Overheating and uneven cooling can contribute to surface defects, dimensional variation and mold stress.
• Temperature should be measured at meaningful points rather than judged from one sensor alone.
• Mold temperature controllers and industrial chillers perform different functions and should be selected according to the process.
• Equipment sizing should consider actual heat load, circulation flow, temperature range and operating schedule.

1. Why Temperature Matters in Zinc Alloy Die Casting

During die casting, molten zinc alloy enters a metal mold under pressure. The mold must be hot enough to support proper filling, but it also needs to remove heat effectively so the casting can solidify and the next cycle can begin.

If the mold is too cold in certain areas, the metal may not fill thin sections as expected, potentially causing incomplete features or surface imperfections. If some regions become excessively hot, solidification can become less uniform, increasing the risk of dimensional variation and sticking during part removal. Temperature also affects the repeatability of the production cycle. A mold that starts each cycle at a different temperature may produce different results even when injection settings remain unchanged.

Hengde Insight：Manufacturers sometimes focus on the temperature displayed by the controller while overlooking temperature distribution across the mold. For complex molds, the difference between hot spots and cooler areas may be just as important as the average temperature. Measuring several representative locations during commissioning can reveal problems that a single sensor misses.

2. What Happens When Temperature Is Unstable?

Temperature-related problems do not always appear immediately. They may develop gradually as production continues, cooling passages become restricted or the thermal balance changes.

• Inconsistent casting quality: Changing mold conditions can affect filling and solidification, making part quality less repeatable.
• Longer cycle times: If the mold retains excessive heat, operators may need to wait longer before safely removing the casting or starting the next cycle.
• Thermal stress: Repeated temperature changes can place additional stress on the mold and its components.
• Unplanned downtime: Unstable temperatures may lead to frequent process adjustments, inspection and troubleshooting.

These symptoms can also have other causes, including injection parameters, mold venting, alloy quality and machine condition. Temperature should therefore be investigated as part of the complete process rather than assumed to be the cause of every defect.

3. How to Design an Effective Temperature Control System

A suitable design starts with the production process, not the equipment catalogue. Engineers should identify the mold's operating temperature, the heat introduced during each cycle, the number of molds or circuits served, and the required production rate.

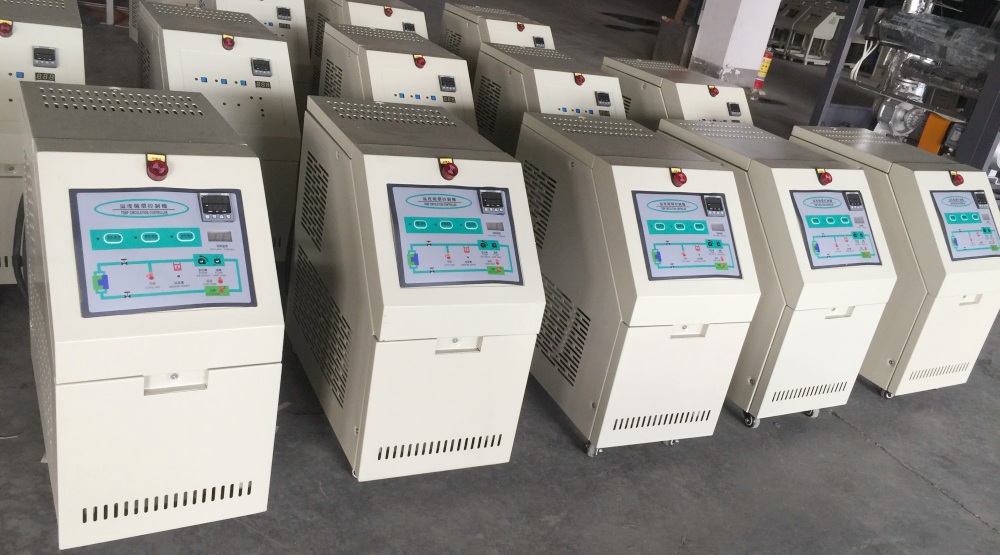

For zinc alloy die casting, an Oil Mold Temperature Controller can circulate heat-transfer oil through the mold circuit to maintain the required operating temperature. Depending on the equipment design, the system can also regulate temperature through controlled cooling.

The following points deserve particular attention:

• Temperature range and accuracy: Select equipment that meets the required operating range and control tolerance.
• Circulation flow and pressure: Ensure the pump can deliver the flow required by the mold passages and associated piping.
• Heat removal: Estimate the actual heat load and determine whether indirect cooling or a separate chiller circuit is required.
• Monitoring and alarms: Track supply and return temperatures, pump status, and relevant overtemperature or low-flow alarms.
• Maintenance access: Allow practical access to filters, pumps, valves and electrical components.

Hengde Insight: Do not size a temperature control system solely according to the mold's physical dimensions. Two molds of similar size can have very different thermal requirements because of their geometry, cycle time, internal passages and production conditions. Actual process data is a much better basis for equipment selection.

4. Mold Temperature Controller vs. Industrial Chiller

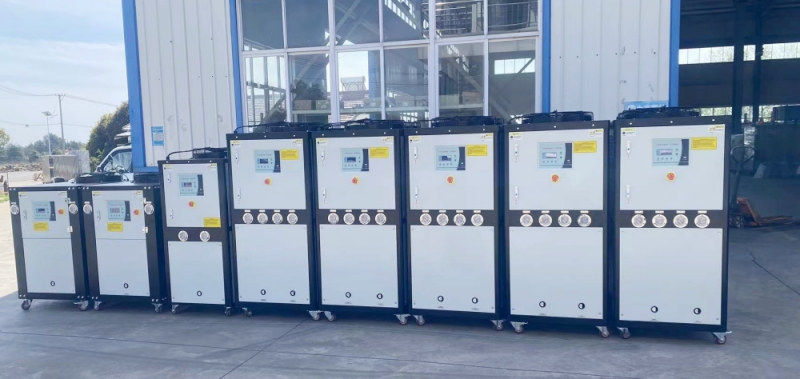

These two types of equipment are often confused, but they serve different purposes. A mold temperature controller primarily circulates a heating or temperature-control medium to maintain the mold at its required operating temperature. An industrial chiller removes heat and supplies cooled water or another specified cooling medium to compatible equipment or process circuits.

An Industrial Chiller does not automatically replace a Mold Temperature Controller. The equipment should be selected according to the function required by each circuit, and the two systems may be used together when the production line needs both controlled mold heating and additional heat removal.

5. Hengde Product Example and Manufacturing Experience

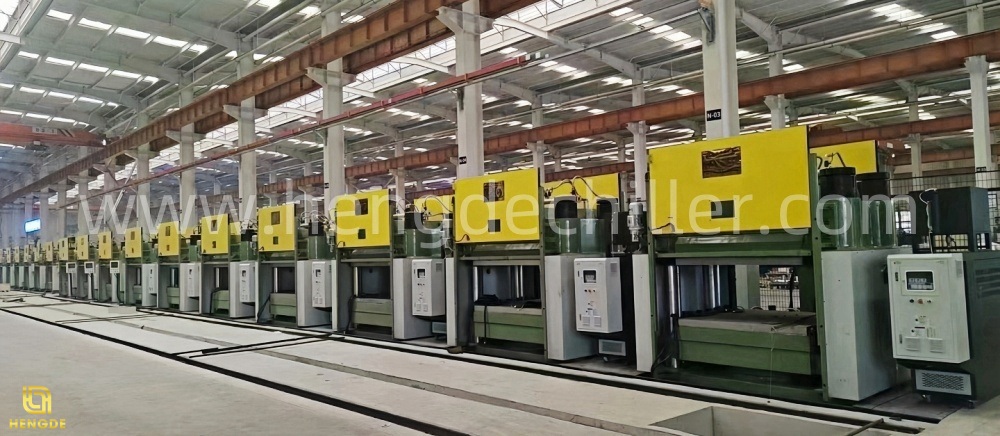

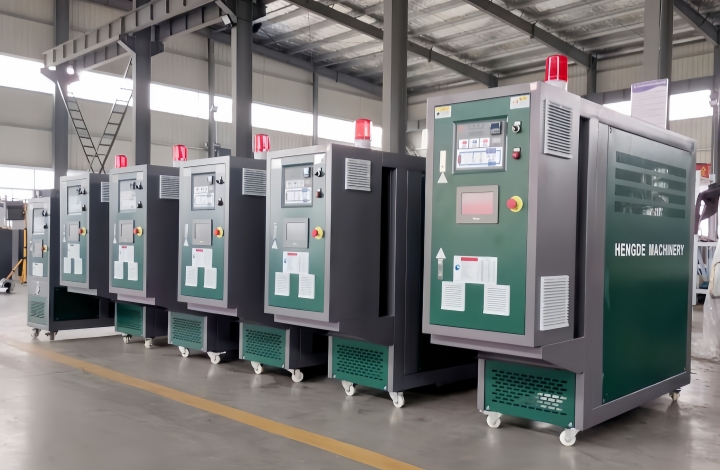

Hengde manufactures temperature control equipment for die casting and other industrial applications. One example is the HDDM-10 zinc alloy die casting mold temperature controller, designed for high-temperature mold applications.

These specifications provide a concrete reference for evaluating a die casting temperature control unit. The appropriate model still needs to be confirmed against the mold's actual operating temperature, required flow, pressure loss, heating demand and cooling conditions.

Hengde was founded in 2010 and provides industrial chillers, mold temperature controllers and customized temperature control solutions. Its product range covers air-cooled and water-cooled chillers, oil and water mold temperature controllers, and equipment for die casting applications. The company states that it has a 15,000 m² facility and more than 150 employees. For zinc alloy die casting projects, Hengde can assess the required temperature range, circulation conditions and equipment layout to help customers choose a suitable configuration rather than relying on a one-size-fits-all solution.

FAQ

What is the suitable mold temperature for zinc alloy die casting?

The required temperature depends on the alloy, mold design, casting geometry and production conditions. Confirm the working range with the process engineer and mold manufacturer rather than applying one setting to every mold.

Can an industrial chiller control the mold temperature directly?

It depends on the circuit design and required temperature. A standard chiller is intended for cooling and cannot replace the heating function of an oil mold temperature controller. High-temperature mold circuits generally require equipment specifically designed for that duty.

Why does mold temperature fluctuate during production?

Possible causes include changing cycle times, inconsistent circulation, restricted passages, sensor placement, control settings or variations in the heat load. Check both temperature readings and actual flow conditions.

How can manufacturers select the right temperature control equipment?

Provide the supplier with the alloy, mold temperature range, heating demand, cycle time, circulation flow, pressure requirements, available utilities and production schedule. This information helps determine the suitable controller or chiller configuration.

Conclusion

Temperature control is a key part of stable zinc alloy die casting. By maintaining suitable mold conditions, monitoring temperature distribution and matching equipment to the real production load, manufacturers can improve process repeatability and reduce avoidable downtime.

Hengde offers industrial chillers and die casting mold temperature controllers for different temperature-control requirements. With product options such as the HDDM-10 and customized solutions based on operating conditions, Hengde can help manufacturers evaluate the right approach for their zinc alloy die casting processes. Contact the Hengde team with your mold temperature, flow and production requirements to discuss a suitable solution.
